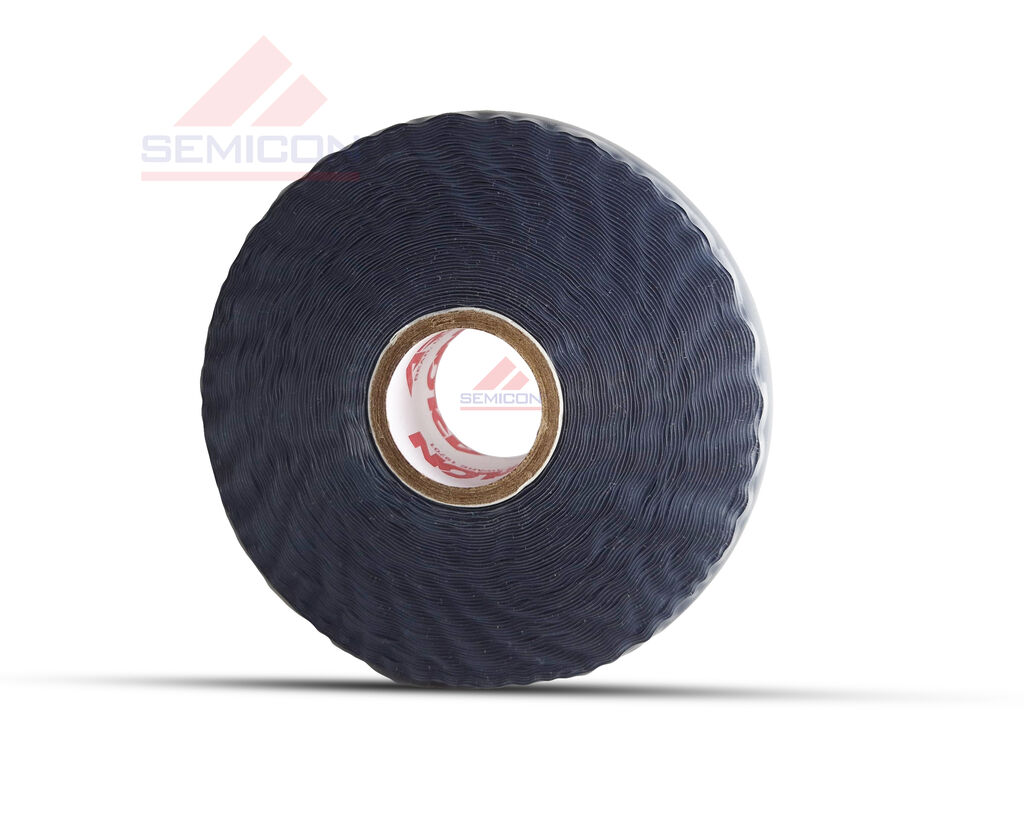

MOX TAPE 604 BLACK 1IN X 12YD X .040IN

Producer: Rogers Corporation/Arlon

Product code: MOX604BLK1INX12YDX040IN

Please contact our sales team for more informaction

Delivery: 5-10 days

If you wish in-store pickup, please contact our Customer Service Office in advance
order@semicon.com.pl or tel.: +48 22 615-83-40

MOX TAPE® 604 - Unsupported, Triangular, Self-Fusing Silicone (Type: T2040-B004-12)

MOX-Tape® Self-Fusing silicone tapes are produced from specially formulated silicone rubber. They bond irreversibly to provide an insulative barrier that is resistant to moisture, oxygen, ozone, and corona over a wide temperature range -54°C up to +260°C (-65°F up to +500°F). These products provide superior electrical insulation with a dielectric strength of 300 VPM minimum at 180°C (356°F).

Features

Available in varying thicknesses and widths
High dielectric strength
RoHS compliant
Class H Material, designed for continuous operation at 180°C, 356°F
Temperature range of -54 to 260°C (-65 to 500°F)
Excellent moisture, oxygen and ozone resistance to assure continuous high insulation values
Excellent and smooth conformability
Bonds only to itself, permanently within 24 hours
Insulates with a single wrap
May be easily removed from other substrates with no residue left behind
